SEM Motors

Find the right motors for your rangehood

Click here to see which motor works for which rangehood...
Motor Reference

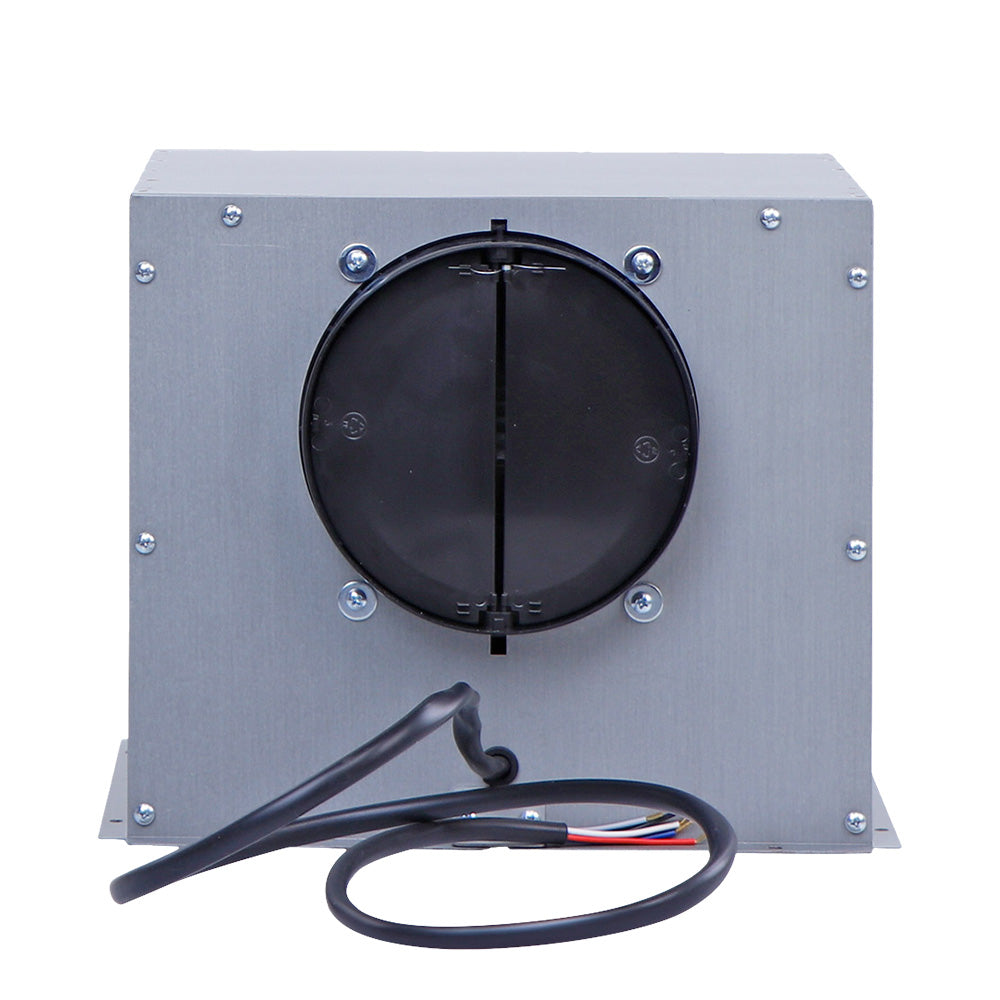

Downdraft Front Mounted Only Motor

  • SKU: DDFMEL
  • 800m3/h extraction
  • Electrical Requirement: 10A
  • Weight: 10kg
  • Warranty: 10 Year Warranty
  • Wattage: 265W
  • Cable Length: 1 Metre
  • Pressure: 480Pa
  • Noise: 64dBa
  • Ducting Diameter: 150mm
  • Dimensions (mm): W286 x D230 x H249

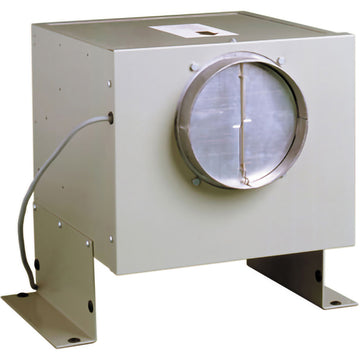

Internal Inline Motor

  • 1200m3/h extraction
  • Aluminium die cast
  • Absorption: 265W
  • Pressure: 480Pa
  • Noise: 64dBa
  • Ducting: 150mm
  • Designed for internal installation inside roof cavity or sub floor installation
  • Can be placed up to 7m away from the hood

  • 1200m3/h extraction
  • Aluminium die cast
  • Absorption: 270W
  • Pressure: 590Pa
  • Noise: 64dBa
  • Ducting: 150mm
  • Designed for internal installation inside roof cavity or sub floor installation
  • Can be placed up to 7m away from the hood

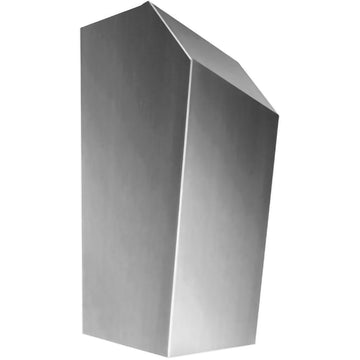

External Wallmounted Motor

  • 1200m3/h extraction
  • Aluminium die cast
  • Absorption: 265W
  • Pressure: 480Pa
  • Noise: 65dBa
  • Ducting: 150mm
  • Designed for external wall mounted installation under 2 metres in height from ground level
  • Can be placed up to 7m away from the hood

  • 1200m3/h extraction
  • EBM Motor
  • Absorption: 220W
  • Pressure: 397Pa
  • Noise: 64dBa
  • Ducting: 150mm
  • Designed for external wallmounted installation under 2 metres in height from ground level
  • Can be placed up to 7m away from the hood

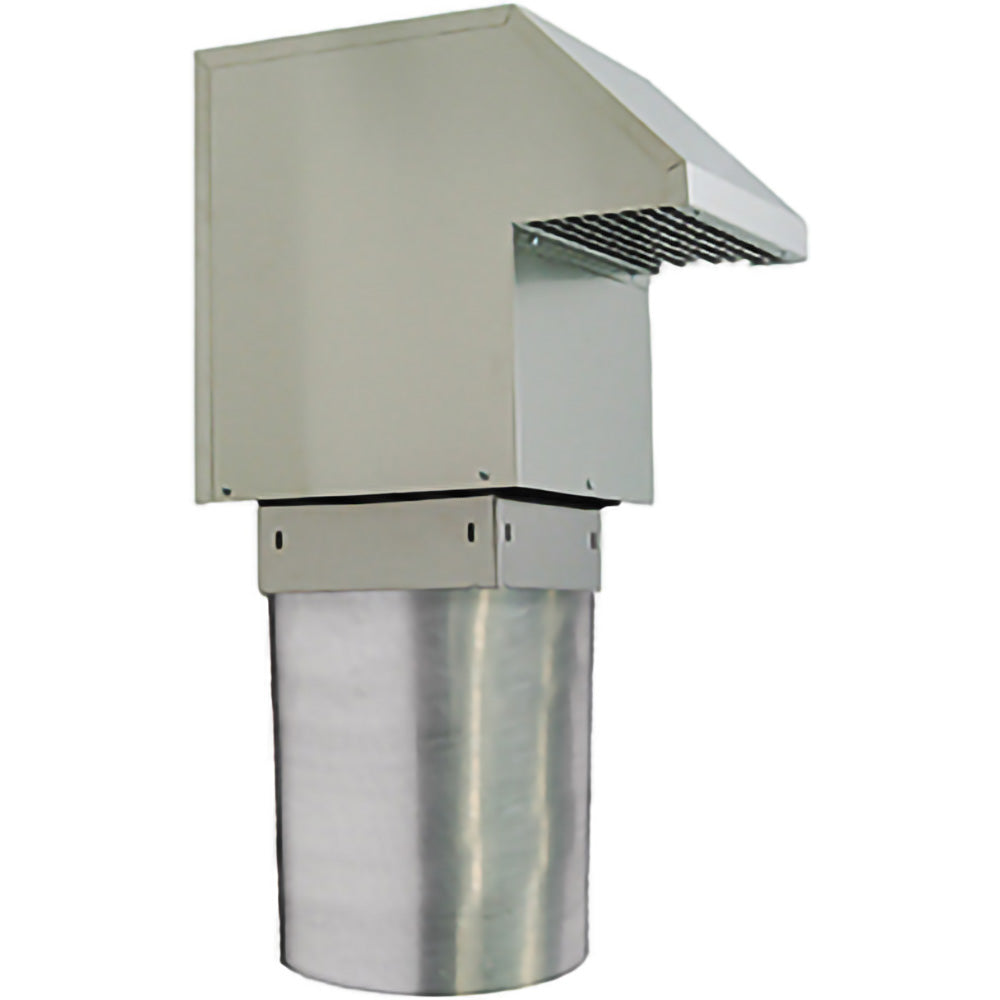

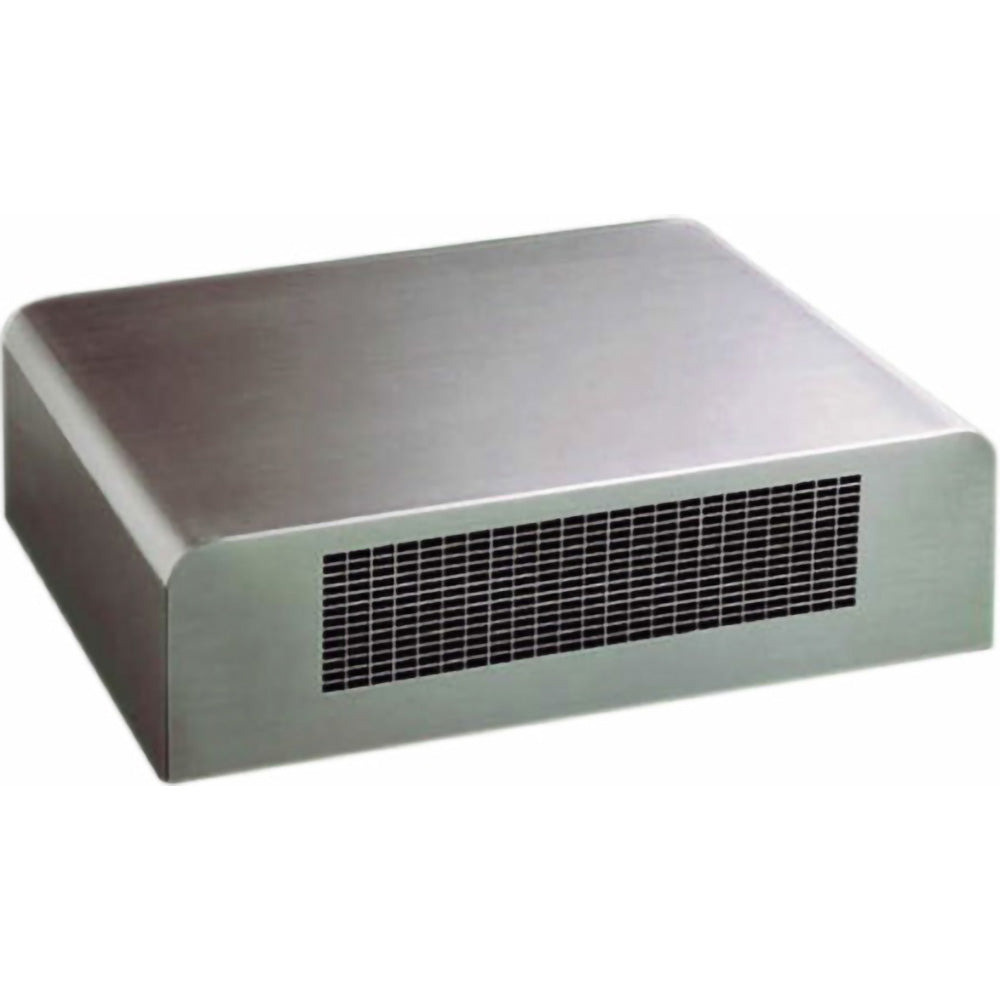

External Roof Mounted Motor

  • 1200 m3/h extraction
  • Aluminium die cast
  • Absorption: 265W
  • Pressure: 480Pa
  • Noise: 64dBa
  • Ducting: 150mm
  • Designed for roof mounted installation
  • Can be placed up to 7m away from the hood

  • 1200m3/h extraction
  • Aluminium die cast
  • Absorption: 270W
  • Pressure: 590Pa
  • Noise: 61dBa
  • Ducting: 150mm
  • Designed for roof mounted installation
  • Can be placed up to 7m away from the hood

External Wall Mounted Motor

  • 2000m3/h extraction
  • Aluminium die cast
  • Absorption: 265W
  • Pressure: 480Pa
  • Noise: 68dBa
  • Ducting: 200mm
  • For external use only, to be wall mounted at a maximum of 2 metres from floor level for serviceability.
  • Can be placed up to 7m away from the hood

  • 2000m3/h extraction
  • EBM motor
  • Absorption 330W
  • Pressure 630Pa
  • Noise: 65dBa
  • Ducting: 200mm
  • For external use only, to be wall mounted at a maximum of 2 metres from floor level for serviceability.
  • Can be placed up to 7m away from the hood

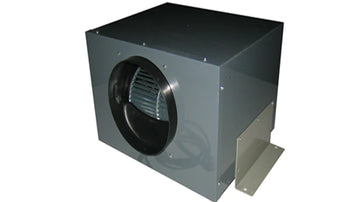

Internal Inline Motor

  • 1650m3/h extraction
  • Aluminium die cast
  • Absorption: 265W
  • Pressure: 480Pa
  • Noise: 65dBa
  • Ducting: 200mm
  • Designed for internal installation inside roof cavity or sub floor installation
  • Can be placed up to 7m away from the hood

  • 1650m3/h extraction
  • EBM Motor
  • Absorption: 500W
  • Pressure: 1100Pa
  • Noise: 64dBa
  • Ducting: 200mm
  • Designed for internal installation inside roof cavity or sub floor installation
  • Can be placed up to 7m away from the hood
